Built-in demo

The packaged app ships a small HTML/JavaScript demo. With the app running, open it from the status window (Open demo) or go to:

http://127.0.0.1:8767/demo/v2/

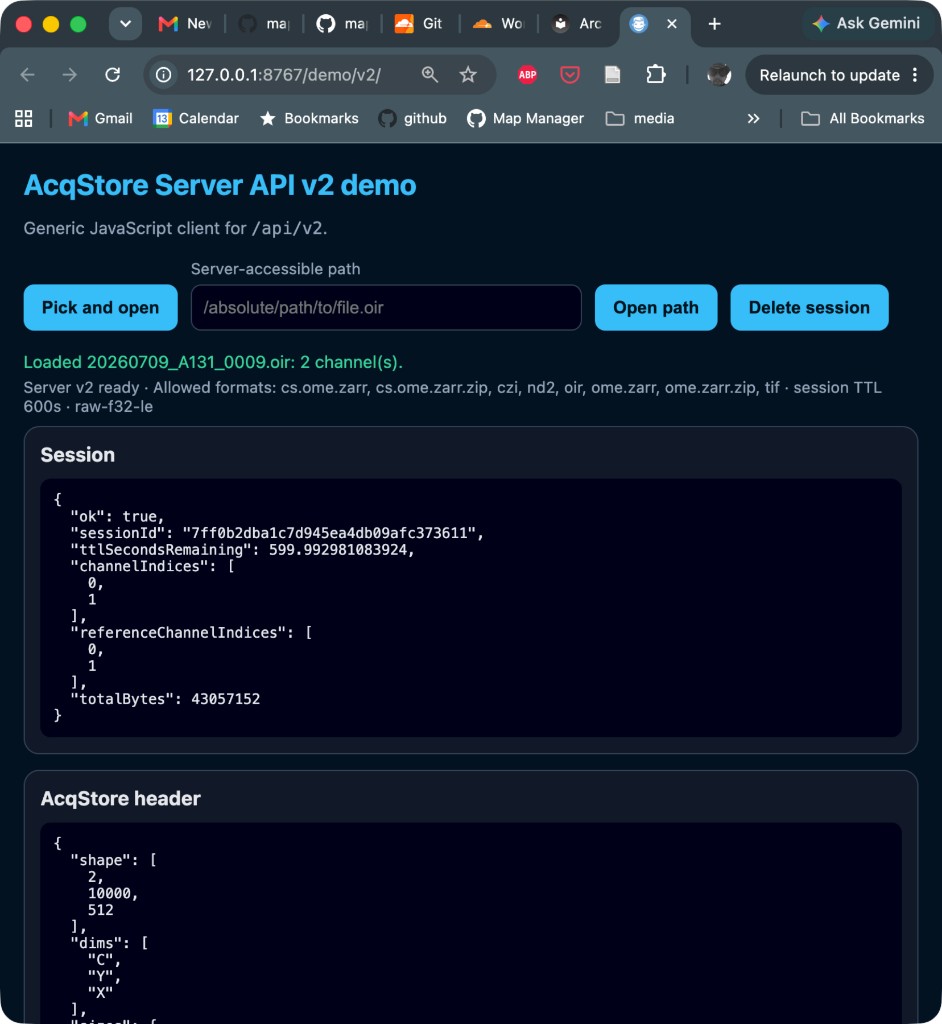

AcqStore Server demo page

What it does

  1. Checks health and capabilities.
  2. Lets you Pick and open a file (native dialog on the machine running the app), or open a path the server can read.
  3. Shows acquisition header / session metadata.
  4. Loads and displays source (primary) image planes.
  5. When present, loads reference image planes and shows the reference line-scan path.
  6. Can delete the session when you are done.

Supported file types come from AcqStore at runtime. Prefer GET /api/v2/capabilities over hard-coding extensions (typical examples include .tif, .oir, .czi, .nd2, and OME-Zarr variants).

Source in this project

The demo page lives in this repository at:

src/acqstore_server/static/demo/v2/index.html

More technical notes: Reference demo. To build your own page, start with Build a client.
